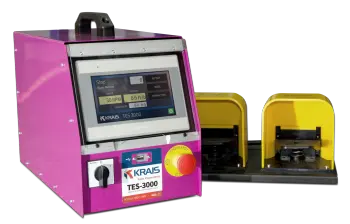

TES-3000 Telescopic Shaft

Click image to enlarge

Part number: TES-3000-TS

Total Price: $0.00

Quantity:

Add to Quote

This Digital Tube Expanding System features a range of powerful and efficient servo motors. Variable Speed and Torque repeatability +/- 1% are a few of the advantages of this system. Created for the demanding customer, this system ensures uniform tube expansion over a wide range of tube diameters and materials, greater efficiency and accuracy combined with ease of use make this system, simple, affordable and extremely fast.

Features

Purely digital and modular system.
High tech servo drive and motor assure accuracy, high quality and repeatability of the results and efficient work.
Extremely easy and user friendly interface on 7” touch screen.
Supported languages: English, Korean, German, Spanish, Portuguese, Chinese, Polish.
USB Flash Drive available to dump expanding log files (48 MB of internal storage space for the log files)
Easy software upgrade with USB flash memory
CE compliant. In full accordance with RoHS compliance.
Motor equipped with EnDat encoder.

TES-3000-TS Specifications

Manufacturer: Krais
Dimensions (mm): 800 x 200 x 900
Control Unit Weight (kg): 14
Footswitch Weight (kg): 5
For Tubes: 1/2" - 1-1/2"
Power Supply: 400V 50/60Hz
