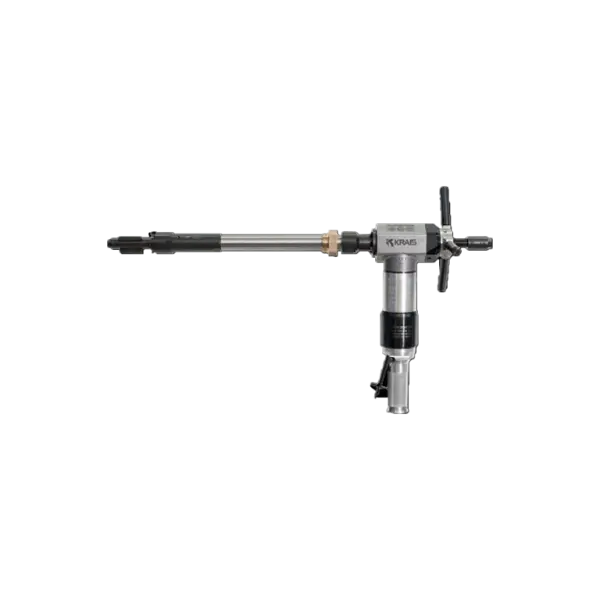

MiniMill 300FF

Click image to enlarge
(MINIMILL-300-FF)
0

Quantity:
Add to Quote
Specifications
  • Free Speed (Rpm): 300
  • Air Use (cfm): 55
  • Power (Hp): 1.3
  • Body Weight (kg): 6
  • Body Weight (lbs.): 13.2
  • Torque (Nm): 43
  • Body Width (in.): 2.32
  • Body Width (mm): 59
  • Air Use (m3/min): 1.3
  • Torque (Ft. Lbs): 32
  • Application Range (ID-OD) (in.): .492 - 2.000
  • Feed Stroke (in.): 0.787
  • Feed Stroke (mm): 20
  • Body Height (in.): 13.1
  • Body Height (mm): 335
  • Application Range (ID-OD) (TPI): 12.5 - 51.0
  • Locking Range (ID): According to the Drawing
