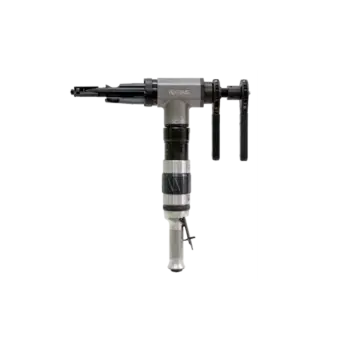

FinMill

FINMILL Specifications

• Free Speed (Rpm): 100
• Air Use (cfm): 75
• Power (Hp): 2.2
• Body Weight (kg): 9
• Body Weight (lbs.): 19
• Torque (Nm): 370
• Body Width (in.): 2.59
• Body Width (mm): 66
• Air Use (m3/min): 2.2
• Torque (Ft. Lbs): 277
• Application Range (ID-OD) (in.): 1-1/4 - 2-1/2
• Feed Stroke (mm): 100
• Body Height (in.): 14.5
• Body Height (mm): 370
• Application Range (ID-OD) (TPI): 31.75 - 63.50
• Feed Strok (in.): 4
• Locking Range (ID)(in.): .984 - 4.803
• Locking Range (ID)(mm): 25 - 122
