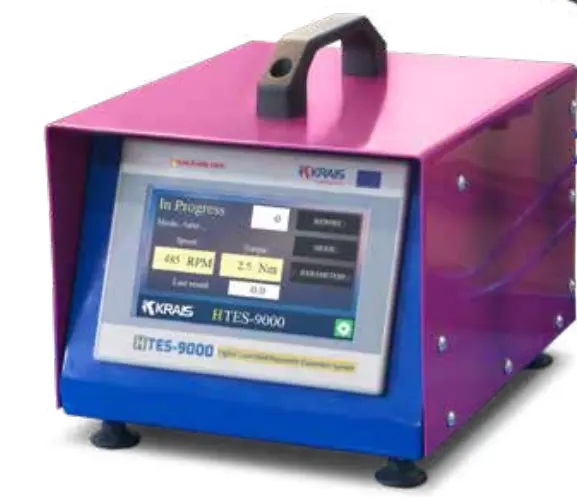

HTES-9000 is the most precise system from the pneumatically driven KRAIS tube rolling machines. The machine has an integrated strain gauge sensor controlled by an electric torque control transducer. Thanks to modern solutions, HTES-9000 is measuring torque directly from the driven spindle with superb precision. For the highest accuracy and repeatability, every machine is carefully calibrated with certified Electronic Torque Tester.
HTES-9000 is the first choice expansion tool for all who need to roll tubes with quality above industry-accepted standards offered by regular pneumatic tube expanding machines.
HTES-9000 system is resistant to air pressure and volume fluctuations - expansion is precise regardless of unstable air supply as long as teh motor is still able to generate enough power. The system monitors torque throughout every expansion cycle, constantly provides the most precise wall reductions for every expanded tube. The system rolls to the targeted wall rduction each time, eliminating a lot of wasteful re-rolling.
Features
- Pneumatic drives with built-in strain gauge sensor and 12V torque control transducer assure the hightest accuracy of measurement
- Easy, user-friendly interface on a 7" touch screen
- Supported languages: English, Korean, German, Spanish, Portuguese, Chinese, Polish
- USB flash drive available to dump expanding log files (48 MB of internal storage space for the log files)
- CE compliant, in full accordance with RoHS compliance
